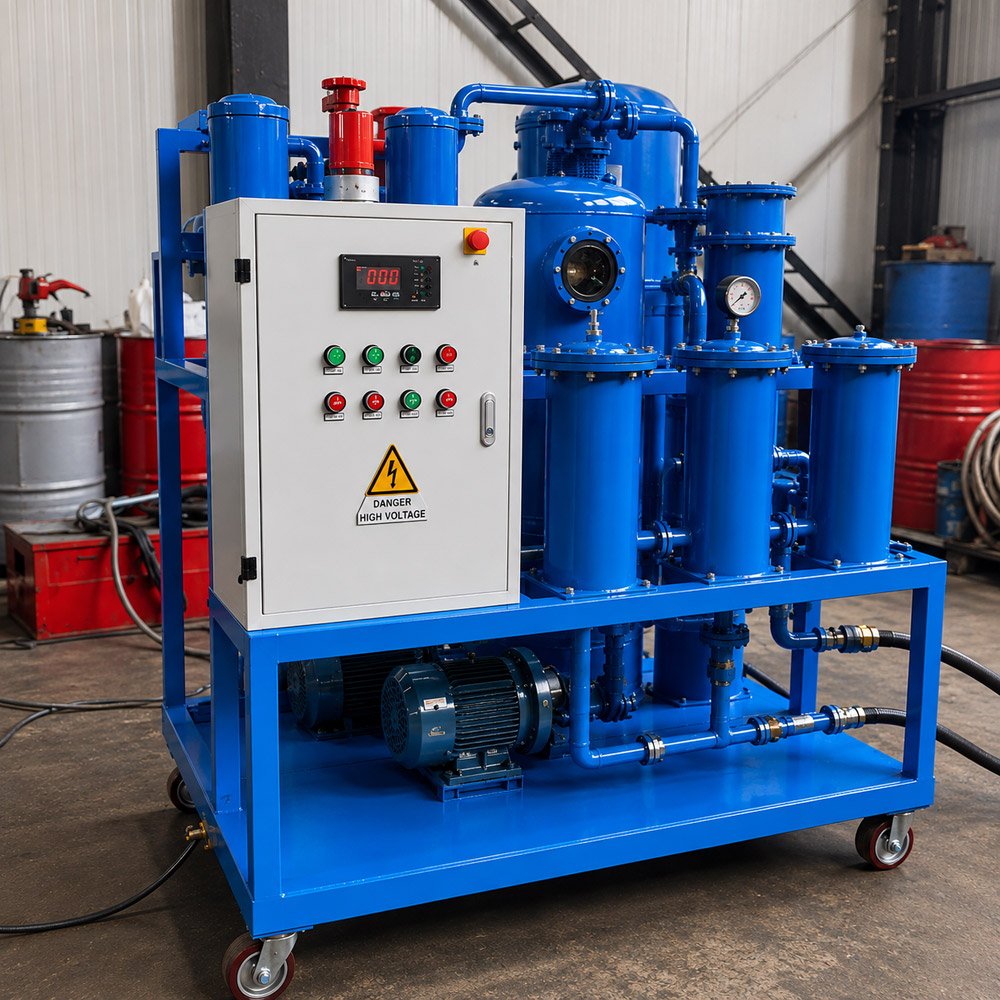

Low Vacuum Dehydration Machine
- 3000 LPH
- Gear Oil
- MS
- Semi & Automatic
- 50Hz
- CFAU
- PAN India, Outside India
Even 500ppm of moisture in oil leads to catastrophic failures in hydraulic systems
AUTOMATIC OPERATION
1. The challenge is to remove moisture without heating to ensure the quality does not deteriorate
2. Or degrades when heated beyond 50°C
3. The biggest enemy of hydraulic food is moisture
The LVDH is the only system, which can remove, cracked oil, thus restoring oil to its original properties.
The LVDH unit removes water/moisture to below 50% of the saturation point in oil at low temperature. (44-600C) and finds application in:
- Hydraulic oils
- Turbine oils
- Compressor oils
- Vacuum pump and compressor seal oils
- Gear oils
- Dehydration before blending different oils.
With a range of models tailored to suit various needs, including the LVDH 600, 900, 2100, 3000, and 6000, we offer versatility and efficacy in oil restoration. Whether you’re managing a small-scale operation or a large industrial facility, there’s an LVDH model to meet your requirements.
Complete Filtration & Utility (CFAU) is an LVDH machine manufacturer based in Ahmedabad, Gujarat, supplying industries across India. Our fully automatic Low Vacuum Dehydration Machine removes free, emulsified and dissolved water, along with entrained air and gases, from hydraulic, turbine, compressor and gear oils. It works at a low temperature of 44–60°C, so the oil is dried without being damaged.
Moisture is the biggest enemy of hydraulic fluid. A CFAU LVDH unit brings water content down to below 50% of the oil’s saturation point, extending oil life and protecting pumps, valves, bearings and gearboxes from breakdowns. Our range covers five models, LVDH 600, 900, 2100, 3000 and 6000, for everything from single machines to large industrial plants.
An LVDH (Low Vacuum Dehydration) machine is an offline oil purification system that uses gentle heat and vacuum to remove moisture from industrial oils. Under vacuum, water boils at a much lower temperature than normal, so the machine separates it without overheating the oil.
Water is present in oil in three forms:
- Free water: visible droplets or a water layer that settles at the bottom of the tank.
- Emulsified water: tiny droplets suspended in the oil, which make it look cloudy or milky.
- Dissolved water: water held invisibly at the molecular level, like humidity in air.
Settling tanks and conventional filters remove only part of the free water. A low vacuum dehydration unit removes all three forms, which makes it one of the most complete solutions for moisture-related oil problems.
Once water rises above the oil’s saturation point, which for many hydraulic oils is only a few hundred ppm, it starts to cause serious damage:
- Rust and corrosion on pumps, valves, cylinders and bearings
- Loss of lubricity and a thinner oil film, which increases wear
- Additive depletion and faster oil oxidation
- Sludge and varnish that block filters and cause valves to stick
- Servo and proportional valve failures in hydraulic systems
- Shorter bearing life and unplanned shutdowns
- Frequent oil replacement and higher maintenance costs
An industrial oil dehydration machine removes the root cause instead of treating the symptoms.
Heating oil to high temperatures to drive off water breaks down the oil and its additives. The real challenge is removing moisture while keeping the oil’s quality intact.
The CFAU LVDH solves this by working under vacuum. Because water evaporates at a much lower temperature under reduced pressure, the machine only needs to heat the oil to 44–60°C. The oil is dehydrated without thermal stress, so it can go back into service and keep performing.
How Does a Low Vacuum Dehydration Machine Work?
Our LVDH machine works on the principle of low-temperature vacuum distillation:
- Oil intake: contaminated oil is drawn from the reservoir through a coarse strainer.
- Gentle heating: the oil is heated to just 44–60°C.
- Vacuum chamber: the warm oil enters a vacuum chamber operating at up to 5 mbar, where it spreads into a thin film. The low pressure makes the water evaporate at low temperature.
- Degassing: dissolved air and gases are pulled out of the oil at the same time.
- Condensation: water vapour moves to a refrigerated condenser, turns back into liquid, and collects in a water tank.
- Fine filtration: the dry oil passes through a 3–10 micron cartridge filter to remove solid particles.
- Return: clean, dry oil is pumped back to the system.
The machine works as a kidney-loop system, so it can run while your equipment is operating, with no shutdown required.
The CFAU LVDH is designed to run automatically with minimal operator attention. Once connected to the reservoir and started, it continuously dehydrates, degasses and filters the oil.
- Automatic, continuous operation
- Automatic water drain from the condensate tank
- Oil level and vacuum controls with automatic shut-off
- Alarms for high temperature, low level or filter clogging
- PLC / control panel with indicators
CFAU offers five LVDH models, so you can match the machine to your reservoir size and water load. Every model is fully automatic and removes free, emulsified and dissolved water, plus entrained air and gases, at a low operating temperature of 44–60°C.
Model-wise Specifications
| Parameter | LVDH 600 | LVDH 900 | LVDH 2100 | LVDH 3000 | LVDH 6000 |
|---|---|---|---|---|---|
| Oil flow rate | 600 LPH | 900–1000 LPH | 2000–2100 LPH | 3000 LPH | 6000 LPH |
| Heater load | 6 kW | 9 kW | 24 kW | On request | On request |
| Vacuum pump capacity | 100 LPM | 100 LPM | On request | On request | On request |
| Mounting | Trolley | Skid | Trolley (4-wheel) | Skid | Skid |
| Dimensions (L × W × H) | 1480 × 780 × 1280 mm | On request | On request | On request | On request |
| Approx. weight | 250 kg | 250 kg | On request | On request | On request |
| Operation | Automatic | Automatic | Automatic | Automatic | Automatic |
Common Specifications (All Models)
| Parameter | Specification |
|---|---|
| Operating temperature | 44–60°C |
| Final water content | Below 50% of the oil’s saturation point (down to 10–20 ppm, depending on oil and number of passes) |
| Water forms removed | Free, emulsified and dissolved |
| Inlet water content handled | Up to 20,000 ppm |
| Gas removal | Entrained air and dissolved gases |
| Maximum vacuum | Up to 5 mbar |
| Condenser | Refrigerated / chiller type |
| Fine filtration | 3–10 micron cartridge filter |
| Oil viscosity | Up to 320 cSt (ISO VG 320) |
| Oils handled | Hydraulic, turbine, compressor, seal and gear oils |
| Construction | MS / SS |
| Power supply | 415 V, 3 Phase, 50 Hz (60 Hz on request) |
| Operation mode | Fully automatic |
Specifications may vary with oil type, viscosity and site conditions. Custom capacities and configurations are available on request.
Not sure which model you need? Share your oil type, reservoir volume and current water content, and our engineers will recommend the right LVDH machine.
Applications: Oils Treated by Our LVDH Machine
- Hydraulic oils: presses, injection moulding machines, rolling mills and mobile hydraulics.
- Turbine oils: steam and gas turbine lube and control oil systems.
- Compressor oils: screw and reciprocating compressors.
- Vacuum pump and compressor seal oils: seal oil systems exposed to process moisture.
- Gear oils: industrial gearboxes.
- Oil blending: dehydration before blending different oils.
Industries We Serve
- Steel plants: rolling mills and heavy hydraulic systems exposed to cooling water.
- Power plants: turbine lube oil and control oil systems.
- Paper mills: high-humidity environments with frequent water ingress.
- Cement plants: gearboxes and hydraulic systems.
- Plastic and injection moulding: hydraulic presses.
- Sugar mills: mill drives and lubrication systems.
- Oil & gas, chemical and petrochemical plants: compressors, seal oil systems and lube systems.
- Lubricant blending units: dehydration before blending.
LVDH vs Other Oil Water Removal Methods
| Method | Free water | Emulsified water | Dissolved water | Gas removal |
|---|---|---|---|---|
| LVDH (Low Vacuum Dehydration) | ✔ | ✔ | ✔ | ✔ |
| Centrifuge | ✔ | Partial | ✘ | ✘ |
| Coalescer | ✔ | Partial | ✘ | ✘ |
| Water-absorbing filter elements | Small amounts only | ✘ | ✘ | ✘ |
For systems with continuous water ingress or stable emulsions, a vacuum dehydration machine for oil is the most effective choice.
Benefits of Using a CFAU LVDH Machine
- Longer oil life, which reduces oil purchase and disposal costs
- Oil is dried at 44–60°C, so its quality is preserved
- Fewer breakdowns and unplanned shutdowns
- Longer life for pumps, bearings, valves and gearboxes
- Fully automatic operation with minimal manpower
- Lower maintenance costs and a fast return on investment
- A greener operation, because less waste oil is generated
Why Choose CFAU as Your LVDH Machine Manufacturer in India?
- Based in Ahmedabad, Gujarat
- Experience since 2017
- Five-model range: LVDH 300 to LVDH 6000 for small and large installations.
- Pan-India supply: delivery, installation and commissioning across India.
- Service and support: operator training, spare parts and after-sales service.
As a trusted LVDH machine supplier in India, we serve customers in Gujarat (Ahmedabad, Vadodara, Surat, Bharuch, Vapi), Maharashtra, Rajasthan, Madhya Pradesh and across the country.
